Uniview Heavy-Duty Wall Mount Bracket for Dome & PTZ CCTV Cameras, Waterproof Outdoor Design (UV-TR-WM03-D-IN-B)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview Heavy-Duty Wall Mount Bracket for Dome & PTZ CCTV Cameras, Waterproof Outdoor Design (UV-TR-WM03-D-IN-B)

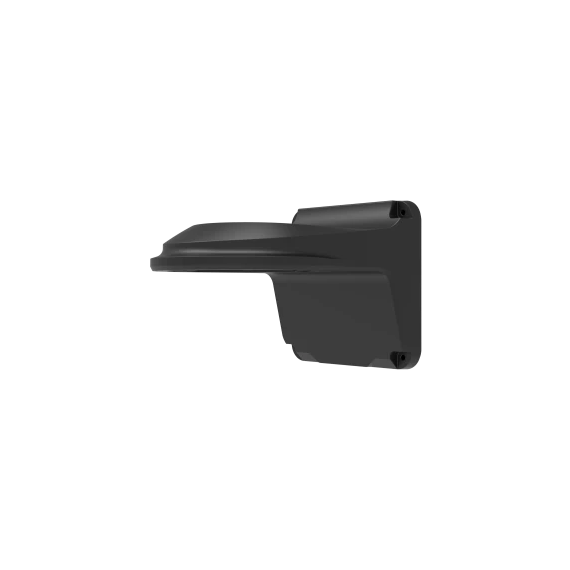

The UV-TR-WM03-D-IN-B is a heavy-duty wall mount bracket designed for secure installation of Uniview dome and PTZ CCTV cameras. It provides a stable and reliable mounting base that allows flexible camera positioning for optimal surveillance coverage. Constructed from high-strength aluminum alloy, it ensures long-lasting durability and resistance against corrosion and harsh weather conditions. Its waterproof design makes it suitable for both indoor and outdoor environments, delivering a clean and professional installation appearance for commercial, industrial, and residential security systems.
KEY FEATURES
- Designed for Uniview fixed dome camera installations
- Integrated junction box for protected cable management
- Durable aluminum alloy construction for long-term reliability
- Premium black finish for modern surveillance setups
- Hidden cable routing with back-hole design
- Suitable for indoor and outdoor environments
- Weather-resistant and corrosion-resistant structure
- Provides stable and secure wall mounting support
- Compatible with IPC363X, IPC353X, IPC31X, and IPC3K2X series cameras
- Professional solution for commercial and residential CCTV systems
- Compact and durable design for easy installation
- Ideal for clean and organized surveillance deployments
