5MP ColorHunter Analogue Bullet White UV-UAC-B125-AF28M-W-W
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview 5MP ColorHunter Analogue Bullet White UV-UAC-B125-AF28M-W-W

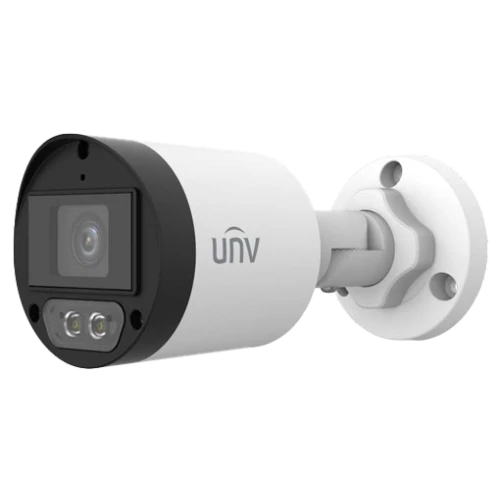

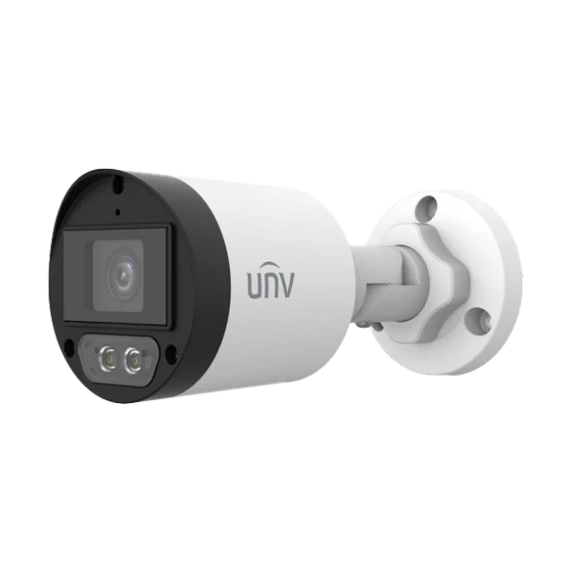

The UV-UAC-B125-AF28M-W-W is a high-quality 5MP ColorHunter analog HD bullet camera designed for reliable outdoor security monitoring. It captures ultra-clear 2880 × 1620 resolution video using a 1/2.7" CMOS sensor, delivering sharp and detailed surveillance footage.
Equipped with dual white light LEDs, the camera provides full-color imaging even in complete darkness, with an effective night vision range of up to 40 meters. The 2.8mm fixed lens ensures a wide viewing angle, making it ideal for homes, shops, warehouses, and outdoor premises.
It supports multiple video formats including TVI, AHD, CVI, and CVBS, ensuring compatibility with a wide range of DVR systems. The built-in microphone allows audio recording over coaxial cable, enhancing security monitoring with sound and video together.
With an IP67 weatherproof metal housing, this camera is built to withstand harsh outdoor conditions, offering long-lasting and stable performance in all environments.
Key Features
- 5MP high-resolution (2880 × 1620) imaging
- ColorHunter technology for 24/7 full-color video
- 2.8mm fixed lens with wide viewing angle (~111°)
- White light illumination up to 40m night vision range
- Built-in microphone for audio recording support
- Supports TVI / AHD / CVI / CVBS video output
- IP67 waterproof and dustproof metal housing
- Low-light performance with 0.005 lux sensitivity
- 180° image flip (horizontal & vertical) support
- 4-in-1 analog compatibility for flexible DVR integration
- Anti-interference long-distance transmission via coaxial cable
- Suitable for indoor and outdoor surveillance applications
