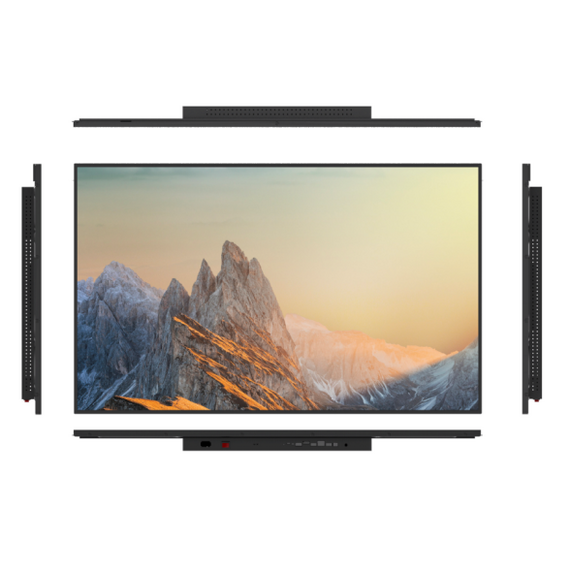

Vigilant Vision 43" 4K Monitor. 3 x HDMI, 1 x DP. Quad, PIP/POP. Metal Case. Remote Control. Wall /Ceiling mounting only
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

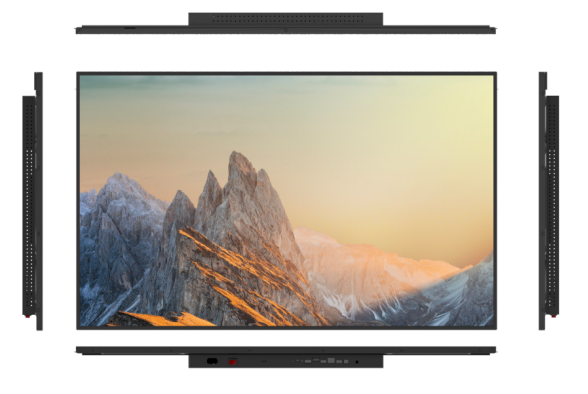

The Vigilant Vision DSM43-4KLED-2 is a high-performance 43-inch LED monitor designed to deliver stunning 4K resolution in a robust metal case. This monitor is perfect for high-definition applications where clarity and detail are paramount. With its impressive 3840 x 2160 resolution and a brightness level of 350 cd/m², it provides vivid and sharp images. The wide viewing angles and high color depth ensure that the display remains consistent and accurate from various perspectives.
Key Features:
- 4K Resolution: Offers ultra-high definition with a maximum resolution of 3840 x 2160 at 60Hz.
- High Brightness: 350 cd/m² brightness ensures clear visibility in various lighting conditions.
- Wide Viewing Angles: 178º horizontal and vertical angles for consistent image quality.
- Metal Casing: Durable metal housing for a sleek, professional look and enhanced durability.
- High Color Depth: Supports 1.07 billion colors with 10-bit color depth for rich and accurate color reproduction.
Specifications:
- Panel Type: 43” LED
- Case Type: Metal
- Maximum Resolution: 3840 x 2160 @ 60Hz
- Active Display Area: 941.184 x 529.416 mm
- Pixel Pitch: 0.2451 mm x 0.2451 mm
- Bezel Thickness: Bottom 7.9 mm, Top/Left/Right 7.9 mm
- Contrast Ratio: 1000:1
- Brightness: 350 cd/m²
- Response Time: 8 ms
- Viewing Angle: 178º (H) / 178º (V)
- Display Colours: 1.07 Billion (10-bit)
- Video Synchronization: Yes
- PC Compatibility: Yes
- Aspect Ratio: 16:9 / 4:3
- VGA Auto Frequency Correction: N/A
- Speakers: Yes
- Number of Speakers: 2
- Sound Demodulation: Yes
- Mute: Yes
- Work Humidity: 5% – 90>#/li###
- Work Temperature: 0 – 50 °C
- Volume +/- Power On/Off: Yes
Additional Notes:
The DSM43-4KLED-2 is engineered for environments where high-definition visuals and durability are essential. The metal casing not only provides a professional appe
