Haydon HAY-RJ45RD0.5MCAT6 Red CAT6 RJ45 Ethernet Patch Lead 0.5m (Pack of 5)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Haydon HAY-RJ45RD0.5MCAT6 Red CAT6 RJ45 Ethernet Patch Lead 0.5m (Pack of 5)

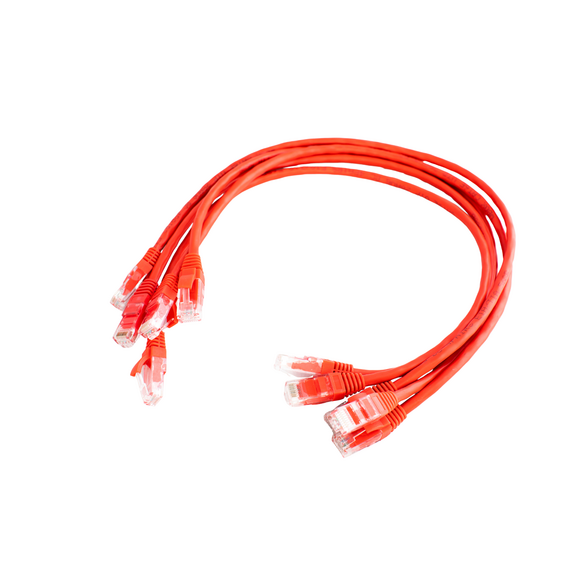

The Haydon HAY-RJ45RD0.5MCAT6 is a premium-quality CAT6 RJ45 Ethernet patch lead designed to provide dependable, high-speed network connectivity for professional CCTV, IT and structured cabling applications. Supplied in a pack of five, each 0.5-metre red patch lead is perfect for short-distance connections within server cabinets, equipment racks and communications enclosures, helping to maintain a tidy and organised installation.
Manufactured using 28 AWG copper conductors, the cable provides excellent flexibility whilst delivering reliable Gigabit Ethernet performance. It is fitted with industry-standard 8P8C RJ45 modular connectors, making it compatible with network switches, routers, patch panels, IP cameras, NVRs, computers, wireless access points, VoIP telephones and other Ethernet-enabled devices. The cable is wired in accordance with the recognised EIA/TIA-568B standard, ensuring seamless integration into existing network infrastructures.

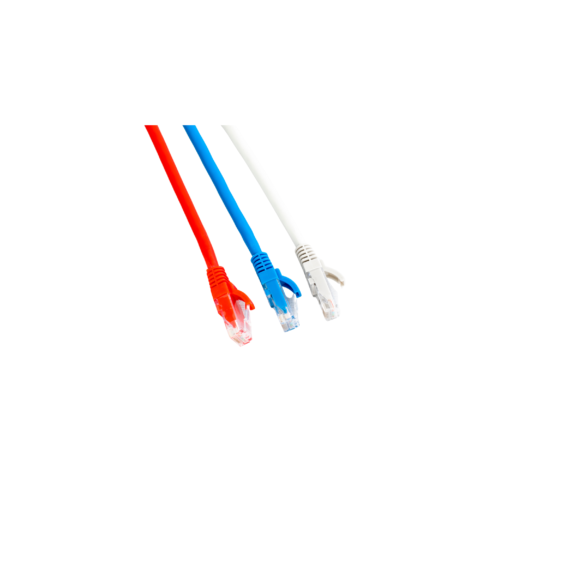

Each RJ45 connector incorporates gold-plated contacts to minimise contact resistance and ensure stable signal transmission over extended periods of use. The integrated moulded snagless boot protects the connector latch from accidental damage during installation whilst providing effective strain relief to improve cable longevity in demanding commercial environments.
KEY FEATURES
- CAT6 RJ45 Ethernet patch lead
- 0.5-metre cable length
- Supplied in a pack of five
- Red cable finish
- RJ45 (8P8C) male connectors
- 28 AWG copper conductors
- Gold-plated connector contacts
- Moulded snagless strain-relief boot
- Durable PVC outer jacket
- EIA/TIA-568B wiring configuration
- Supports up to 550MHz bandwidth
- Suitable for Gigabit Ethernet applications
- Compatible with CCTV, IP cameras and PoE devices
- Flexible cable construction
- Ideal for structured cabling installations
