Hikvision DS-1272ZJ-110 (HiLook HIA-B401-110) wall mount
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

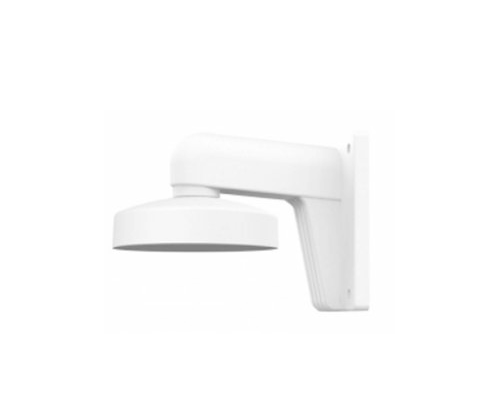

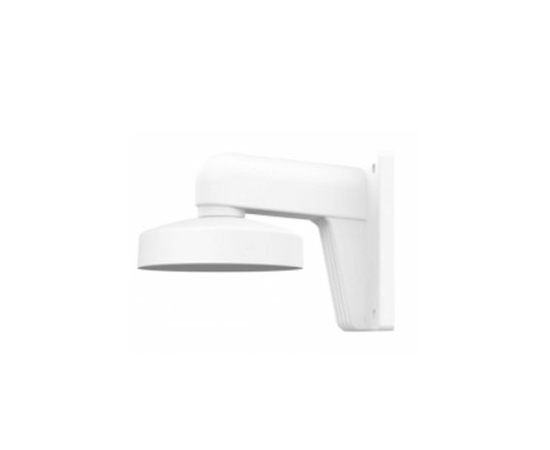

Hikvision DS-1272ZJ-110 Wall Mount Bracket
The Hikvision DS-1272ZJ-110 is a professional wall mounting bracket designed for compatible Hikvision mini dome cameras. It provides a secure and reliable mounting solution for wall-mounted CCTV installations, allowing cameras to be positioned correctly while maintaining a clean and professional appearance.
Constructed from high-quality aluminium alloy with a surface spray treatment, the DS-1272ZJ-110 offers excellent strength, durability, and long-term reliability. Its robust design provides stable support for compatible dome cameras, making it suitable for residential, commercial, and professional surveillance applications.
The bracket features an integrated cable entrance hole to help route and conceal camera wiring, reducing exposed cables and improving the overall installation finish. Its improved waterproof design and convenient cap installation system help simplify camera fitting while providing enhanced protection for suitable outdoor applications.
Key Features:
- Genuine Hikvision wall mounting bracket for mini dome cameras
- Designed for compatible Hikvision dome camera installations
- Durable aluminium alloy construction with surface spray treatment
- Hikvision White finish for a professional appearance
- Integrated cable entry hole for neat cable management
- Improved waterproof design for suitable outdoor installations
- Convenient cap design for easier installation and camera adjustment
- Provides secure and stable camera positioning
- Suitable for residential, commercial, and professional CCTV systems
- Dimensions: 122 × 120 × 169 mm
- Weight: approximately 480 g
- Maximum load capacity: up to 4.5 kg
The Hikvision DS-1272ZJ-110 Wall Mount Bracket is an ideal accessory for installers requiring a dependable mounting solution for mini dome cameras. It improves installation quality by providing secure camera support, better cable protection, and a neat finished appearance for a wide range of surveillance projects.
Please note: The bracket should be installed on a suitable flat wall surface capable of supporting more than three times the combined weight of the camera and mounting accessory. Always confirm compatibility with your specific Hikvision camera model before installation.
