Hikvision DS-1272ZJ-110 Black Wall Mount Bracket
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Hikvision DS-1272ZJ-110 Black Wall Mount Bracket

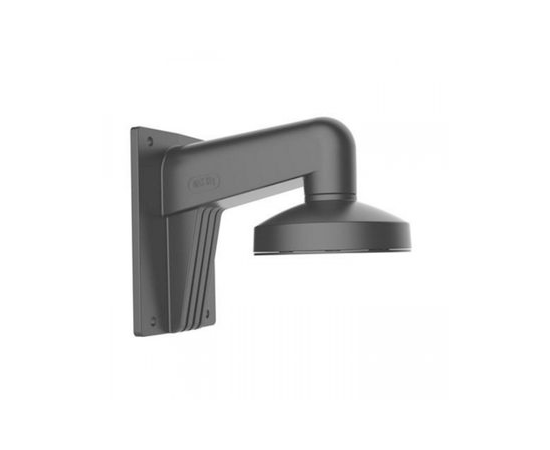

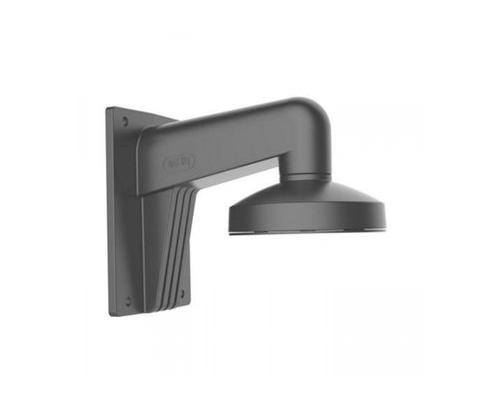

The Hikvision DS-1272ZJ-110 (Black) is a professional wall mounting bracket designed for compatible Hikvision mini dome and vandal dome cameras. It provides a secure and reliable mounting solution for wall-mounted CCTV installations, allowing cameras to be positioned correctly while maintaining a clean and discreet black finish.
Constructed from durable aluminium alloy, the DS-1272ZJ-110 (Black) offers excellent strength and long-term reliability for professional surveillance applications. The robust design provides stable camera support, while the black finish makes it particularly suitable for installations where a darker, less visible mounting solution is preferred.
The bracket features an internal cable routing design to help conceal and protect camera wiring, reducing exposed cables and improving the overall appearance of the installation. Its cap design helps simplify installation, while the integrated mounting space supports a neat and organised camera setup.
Key Features:
- Genuine Hikvision black wall mounting bracket
- Designed for compatible Hikvision mini dome and vandal dome cameras
- Durable aluminium alloy construction
- Hikvision Black finish for discreet installations
- Internal cable routing design for improved cable management
- Cap design for easier camera installation
- Provides secure and stable camera positioning
- Suitable for indoor and outdoor CCTV installations
- Ideal for residential, commercial, and professional surveillance systems
- Dimensions: 122 × 120 × 169 mm
- Weight: approximately 480 g
- Maximum load capacity: up to 4.5 kg (installation dependent)
The Hikvision DS-1272ZJ-110 (Black) Wall Mount Bracket is an ideal accessory for installers requiring a reliable and discreet mounting solution for dome cameras. It combines strong aluminium construction, neat cable management, and a professional black finish to provide a high-quality installation solution for modern CCTV systems.
Please note: The bracket should be installed on a suitable flat surface capable of supporting more than three times the combined weight of the camera and mounting accessory. Always confirm compatibility with your specific Hikvision camera model before installation.
